Conveyor Belt
Cleaning & Sanitising
Cleaning Equipment for Conveyor Belts
What is the Conveyor Belt Cleaning System?
Technology Parts of Conveyor Belt Cleaning
The Conveyor Head

The Control Panel

Belt Types

Brush Core

Cleaning System for Various Conveyor Belts

FLAT BELT/PVC

INTERLOCK/MODULAR BELT

FABRIC CONVEYOR BELT

METAL BELT

TOP CONVEYOR CLEANING

BOTTOM CONVEYOR CLEANING

PLASTIC BELT

MESH BELT
How to Clean Conveyor Belts
Conveyor Belt Cleaning Simplified

Overcomes traditional, time-consuming manual cleaning

Eliminates the need for system shutdowns

Offers a fast, efficient, chemical-free solution by Tecnovap
- (if portable system) Attach the Conveyor Cleaner to the appropriate position on the conveyor system.
- Connect the steam generator and vacuum system of the JetVac or SteamBox.
- When steam is ready adjust the Conveyor Cleaner squeegee and brush onto the belt so there is contact.
- Run the conveyor and turn on the steam and vacuum to start cleaning. The steam will emulsify soiling, the brush will break down and the vacuum will remove simultaneously.
- Once the belt is clean (usually a few cycles) simply raise and turn off the Conveyor Cleaner system.
- The conveyor system is now clean and sanitised. All with minimal physical effort, very little water, no chemicals, and no mess. The Conveyor Cleaner can also be permanently fixed to the conveyor belt system.
Conveyor Belt Cleaning Features

165-180°C Dry Steam
165-180°C superheated dry steam is great for sanitising the conveyor belt surface and cutting through hard to clean soiling like oils and fats.

Portable or Integrated
The Conveyor Belt Cleaning System can be used as a fixed system to reduce downtime while performing continuous cleaning process, or as a portable system for cleaning multiple conveyors.

Vacuum Extraction
Machines with a vacuum can extract soiled grimes and oily residues during production and ensure your belts dry for next use to reduce downtime.

Continuous Steam
The steam generators that power the Conveyor Belt Cleaning System all feature continuous steam production and have large water capacities.

Customised Solution
Allow customisation so it can adapt to your factory and permits you to implement "inline" cleaning for production efficiency.

Control Panel
The electronic Control Panel enables you to control the cleaning system - from turning on the vacuum to regulating the amount of steam released onto the conveyor belt.
Machines for Conveyor Belt Cleaning System
The Conveyor Belt Cleaning System comprises of four main components

Standard 600mm Mountable Squeegee

Electronic Control Box

2.5m Vacuum Hose

Steam Bacchus Hose 12P
Recommended Steam Generators
Technical Specs

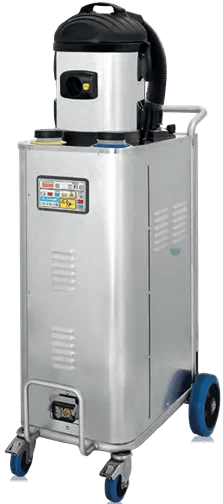

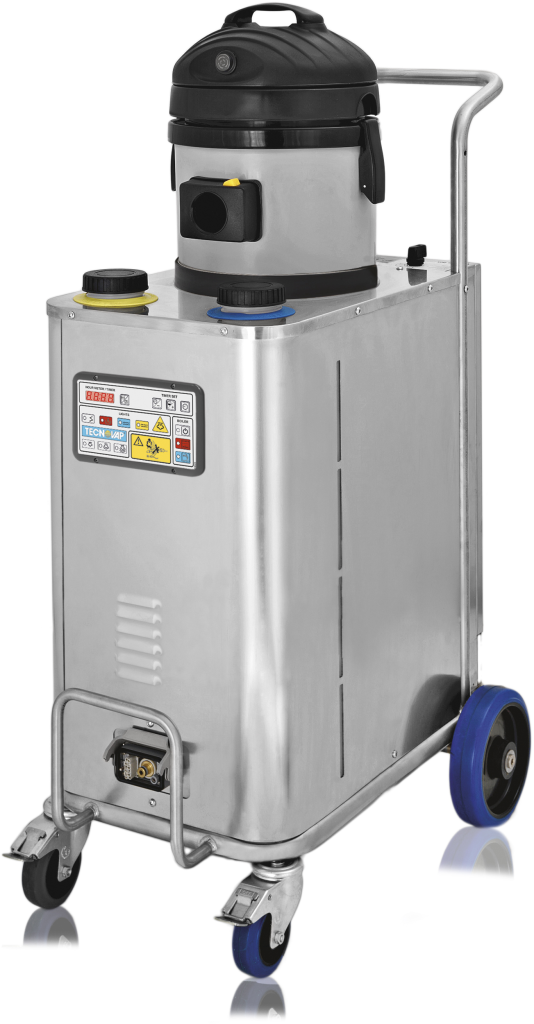

Specifications | Jetvac Major | Jetvac Force | Jetvac Industrial |
---|---|---|---|
Pressure | 6 | 10 | 10 |
Water Storage (L) | 35 | 27 | 40 |
Steam Temperature (°C) | 165 | 180 | 180 |
Continuous Steam | yes | yes | yes |
Hot Water / Chemical Injection | yes | yes | yes |
Chemical Injection Temperature (°C) | 125 | 145 | 145 |
Recovery Vacuum Drum (L) | 14 | 14 | 35 |
Machine Weight (kg) | 74 | 40 | 140 |
Max Power (W) | 4800 | 4850 | 13900 |
Ideal Industries for Conveyor Belt Cleaner
Food Processing Plants


Sanitise Conveyor

Remove food build up

Speed clean and sanitise other food processing equipment like benches, machinery and ovens.
Pharmaceutical


Sanitise Conveyor

Vacuum and remove dust

Deep clean hard to reach areas and other equipment
Industrial


Sanitise and disinfect engineering systems

Deep-cleaning winery conveyor belts

Cleaning warehouse and logistics conveyor belts
