Bacchus Steam System: Optimised Wine Barrel Cleaning Solutions
Revolutionary Solution for Bacchus Wine Barrel Cleaning System
The Bacchus Steam System is an innovative solution, expertly designed for efficient steam cleaning and sterilisation of wine barrel cleaning. Capable of operating within a steam pressure range of 0.2 to 6 bar, the system provides a continuous steam flow, ensuring effective and thorough cleaning. It is adept at handling both microfiltration and non-microfiltration systems.
How Does It Work?
The Bacchus Steam System streamlines the cleaning process of wine barrel cleaning. Its design and operation ensure a safe, eco-friendly, and efficient cleaning solution, negating the need for special permissions or patents for use, and significantly contributing to a more sustainable and cost-effective production environment.
1. Initial Setup and Rinsing
- Connect the Bacchus Steam System to a reliable water supply.
- Access the control panel and adjust the settings to align with the specific cleaning requirements of the wine barrel.
- Employ a high-pressure water jet to thoroughly rinse the interior of the wine barrel.
2. Steam Cleaning and Sterilisation
- Initiate the Bacchus Steam System, activating the steam injection process.
- Access the control panel and adjust the settings to align with the specific cleaning requirements of the wine barrel.
- Allow the system to cool down completely before proceeding to the final rinse stage.
3. Final Rinse and Completion
- Repeat the rinsing process using cold water to remove any loosened residues or residual steam.
- Inspect the barrel's interior to confirm that it is clean and free of any contaminants.
Discover Bacchus Steam System for Wine Barrel Cleaning
Why Choose the Bacchus Steam System?
Effective Sterilisation: The Bacchus System offers a complete solution for cleaning, capable of eradicating various contaminants, including Brettanomyces yeast, from wood fibres.
Environmentally Conscious: The chemical-free cleaning process renders the system eco-friendly, reducing the need for harsh chemicals and minimising water wastage.
Adaptability and Safety: Appropriate for a broad range of applications beyond wineries, including the food and beverage industry, owing to its adaptable design and safety features.
User-Friendly: The system’s intuitive interface and low-voltage control panel make it straightforward to operate, requiring minimal training.
Efficiency: The Bacchus Steam System provides a time-efficient cleaning method, with swift setup and rapid cleaning cycles, enhancing overall productivity in the winery.
Bacchus Steam Cleaning for Wine Barrels, Tanks and Bottling Lines
Wine Barrel Cleaning
Winery Equipment

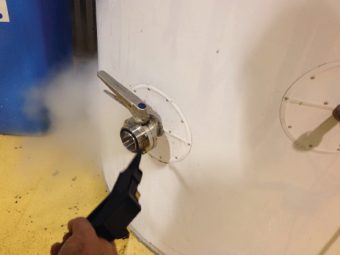

Storage Cleaning
Tank Cleaning
Vats Cleaning
Bottling Lines
Advanced Features of the Bacchus Steam System
Comprehensive Cleaning and Sanitisation
The Bacchus System offers dual functionality, excelling in both cleaning and comprehensive sanitisation.
Its high-temperature steam effectively eliminates harmful bacteria and pathogens, ensuring barrels are not only clean but also safe for wine storage. This system is uniquely tailored to the needs of wine barrels, suitable for both old and new barrels, providing a versatile and thorough cleaning solution.
Sustainable and Eco-Friendly Approach
By eliminating the use of chemicals in the cleaning process, the Bacchus System significantly reduces the ecological impact typically associated with barrel cleaning.
Additionally, its design focuses on energy efficiency, using minimal power to achieve maximum cleaning efficiency, thus contributing to lower energy consumption overall.
Easy Integration into Existing Processes
The Bacchus System can be seamlessly integrated into existing production lines, negating the need for extensive modifications.
This feature, coupled with its user-friendly design, ensures that staff can quickly learn to operate the system, reducing both the time and cost involved in training.
Longevity and Maintenance
Constructed with high-quality materials, the Bacchus System is built to last, ensuring long service life and reliability.
Its design also simplifies maintenance, with accessible parts and straightforward procedures, reducing downtime and maintenance costs.
Best Wine Barrel Cleaning System: Enhancing Quality and Purity
Optimise your best wine barrel cleaning process with our advanced Bacchus Steam System. While it significantly improves the cleaning and sanitisation of your wine barrels, it is also perfectly aligned with our bottling line cleaning solutions. Discover how the Bacchus Steam System can bring efficiency and cleanliness to every stage of your winemaking process, from barrel to bottle.
Learn More About Bottling Line CleaningWine Barrel Cleaning Machines for Bacchus Steam System
Recommended Steam Generators for Wine Industry Cleaning Systems
The Bacchus Steam System, an innovative wine industry cleaning solution achieves its full potential when complemented by high-efficiency steam vacuum machines. These machines are meticulously chosen for their superior performance, ensuring a deep and thorough cleaning and sterilisation of wine barrels.
Bacchus Static
Bacchus Mini
Bacchus Pro
Bacchus Industrial
Steam Pressure
Steam Pressure
Technical Specs
| Specifications | Bacchus Static | Bacchus Mini | Bacchus Pro | Bacchus Industrial |
|---|---|---|---|---|
| Boiler Material | Stainless Steel AISI 304 | Stainless Steel AISI 304 | Stainless Steel AISI 304 | Stainless Steel AISI 304 |
| Boiler Volume (l) | 7 to 12 | 5 | 7 | 11 to 13 |
| Boiler Output (kW) | 7.2 to 14.4 | 3.6 | 3.6 to 10.8 | 10.8 to 36 |
| Operating Pressure (bar/psi) | 6 / 87 | 6 | 6 | 6 / 87 |
| Steam Production (g/min - kg/h) | 194 to 388 / 11.5 to 23 | 97 / 5.9 | 97 to 291 / 5.9 to 17.5 | 291 to 970 / 17.5 to 58 |
| Power Supply | 400 V - 50/60 Hz | 230 V - 50/60 Hz | 400 3 V~ - 50/60 Hz | 400 3 V~ - 50/60 Hz |
| Power Cord Length (m) | 8 | 8 | 8 | 8 |
| Weight (kg/lb) | 65 / 143 | 25 / - | 50 / - | 60 / 132 |
| Water Tank (l) | - | 7.5 + 7.5 | 10 | 20 |
| Packaging (LxWxH cm) | - | 63x45x75 | 115x65x115 | 115x65x115 |
| Quantity per Pallet | 1 | 1 | 1 | 1 |
ADDITIONAL TOOLS AND ACCESSORIES
EXPLORE toolsGeyser 1 Kit
Steam accessories are designed for high temperatures, rated at 10 bar and 180°C, ideal for industrial and professional purposes.
Geyser 1 Hose
Geyser lance 1200mm
Geyser lance 800mm
Geyser lance 400mm(optional)
Flat nozzle
Nozzle Connection
Stainless Steel Brush
Triangular Brush (optional)
Geyser 2 Kit
Steam accessories are designed for high temperatures of 10 bar and 180°C, paired with high-pressure water at 150 bar.
Geyser 2 Hose
Geyser Lance 1200mm
Geyser Lance 800mm
Diffuser for lances
Brush connection
Square stainless steel brush
Triangular Brush (optional)
Square nylon brush
July 6 Bar Kit
High-temperature steam accessories for use at 6 bar.
July 6 bar hose
Extension tube 480mm
Rectangular brush
Window cleaner
Steam lance
Nylon brush
Brass brush
Triangular brush
Bacchus Kit
The Bacchus Kit, essential to the Bacchus Cleaning System, serves the winery industry's needs for both wine barrel and bottling line cleaning. Its design combines high-temperature steam technology for optimal cleanliness and efficiency in wine production.
Bacchus Food-Grade Silicone Hose
Garolla Connection
Garolla Connection with Mechanical Safety Valve
DIN Connection
Steam Diffuser
High-Pressure Cleaning Rod for Use with a Different High-Pressure Washer
High-Pressure Cleaning Rod with Steam and Vacuum
Duplex machines are stamped with Smart Approved WaterMark stamp
Smart Approved Water Mark is Australia's water conservation label. This allows businesses to purchase products that save water and actively engage in the efficient use of water. Our Duplex machines are the first of its kind steam generators and multi-floor cleaners to feature the Smart Approved Water Mark stamp. Learn more about Smart Approved Watermark
